The signals used around Sydney, NSW do not use "standard" CTC aspects, but a dual head (2 or 3 aspects over 3 aspects) system (plus plenty of other subsidiary options). As I wanted to have correctly signalled movements on my layout, I have to scratch build every signal (more than 20). 3mm LEDs provide the illumination, and I found some 2 and 3 aspect moulded heads on the internet, but I needed to be able to solder the LEDs so they fitted into the heads, and also provided a rigid support for multiple heads mounted on posts, or gantries. I had bought some Fast-Track ties a while ago, and these are the perfect width for fitting between the 2 wires of the LEDs, and also fit nicely into brass tube masts. The LEDs are all wired the same way round, and gaps are cut in the ties to keep them isolated. Wires from each LED will be wired to an Arduino for actual control (but that's a whole different story).
To save a 1000 words, photos attached.
Ross McConchie
Canberra
Australia
| Attachments: |

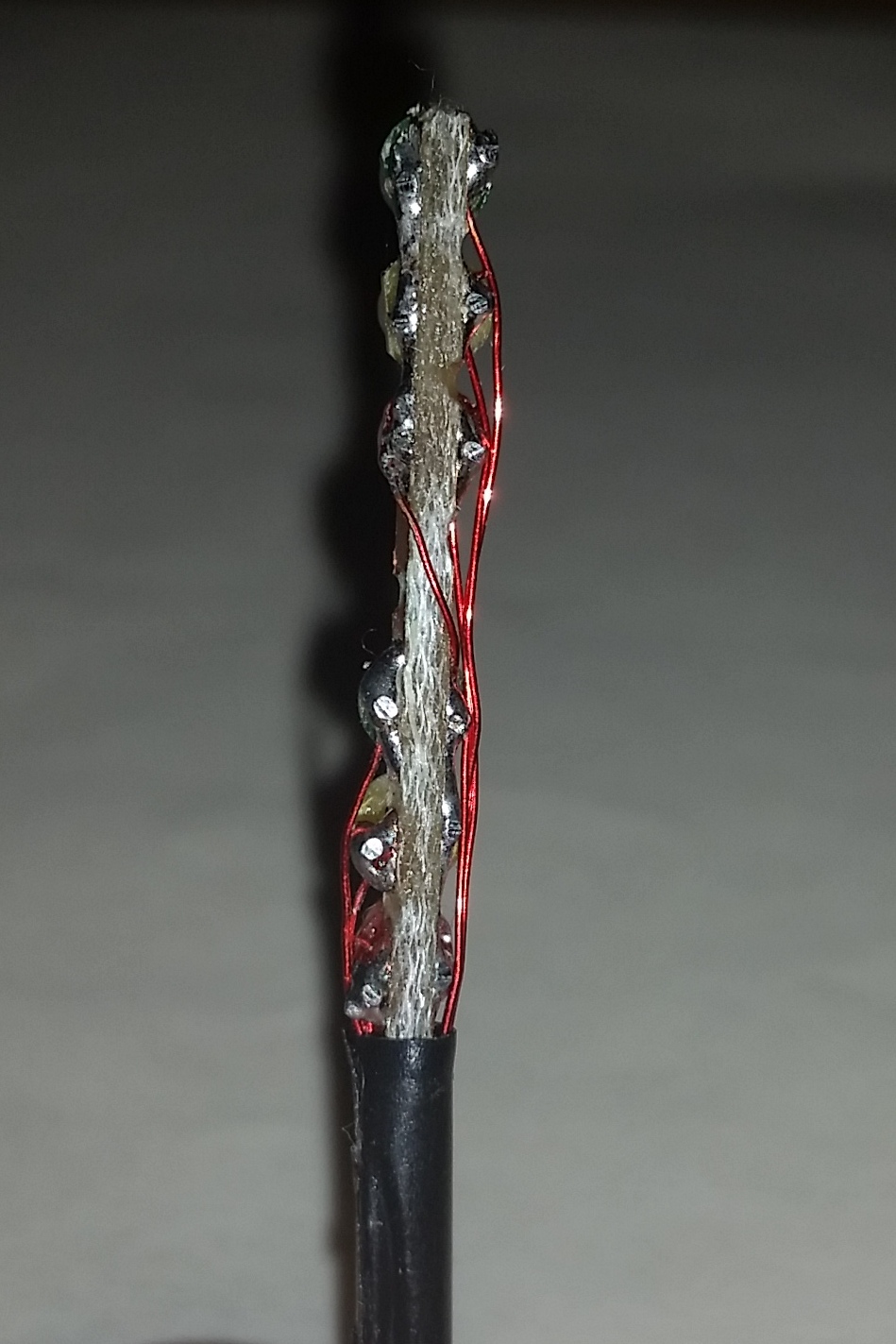

File comment: NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie.
📷 Attachment lost: 2015-07-20 19.54.47.jpg
333,345 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie. |
2015-07-20 19.54.47.jpg [ 325.53 KiB | Viewed 9600 times ]
|

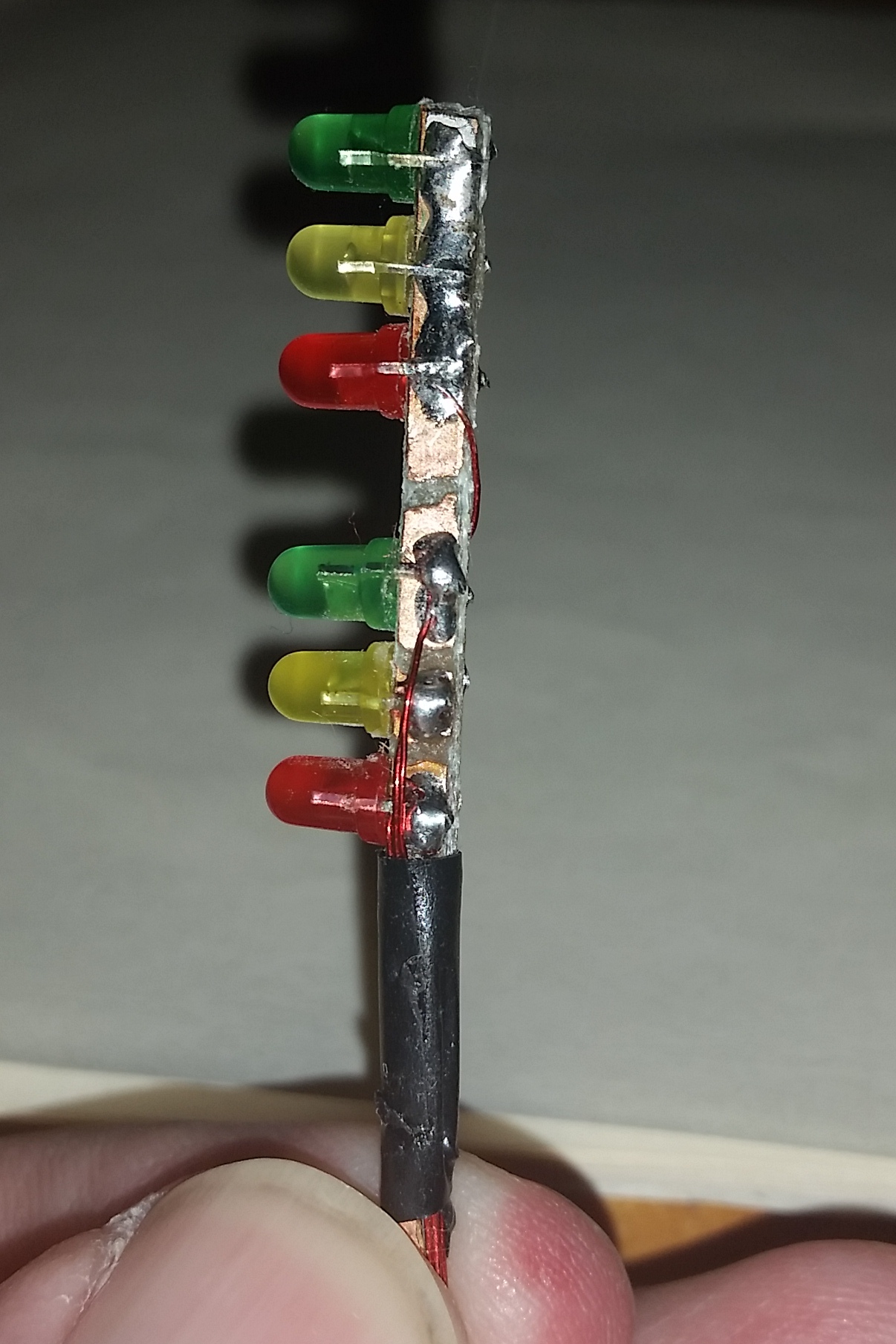

File comment: NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie.
📷 Attachment lost: 2015-07-20 19.54.56.jpg
560,620 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie. |
2015-07-20 19.54.56.jpg [ 547.48 KiB | Viewed 9600 times ]
|

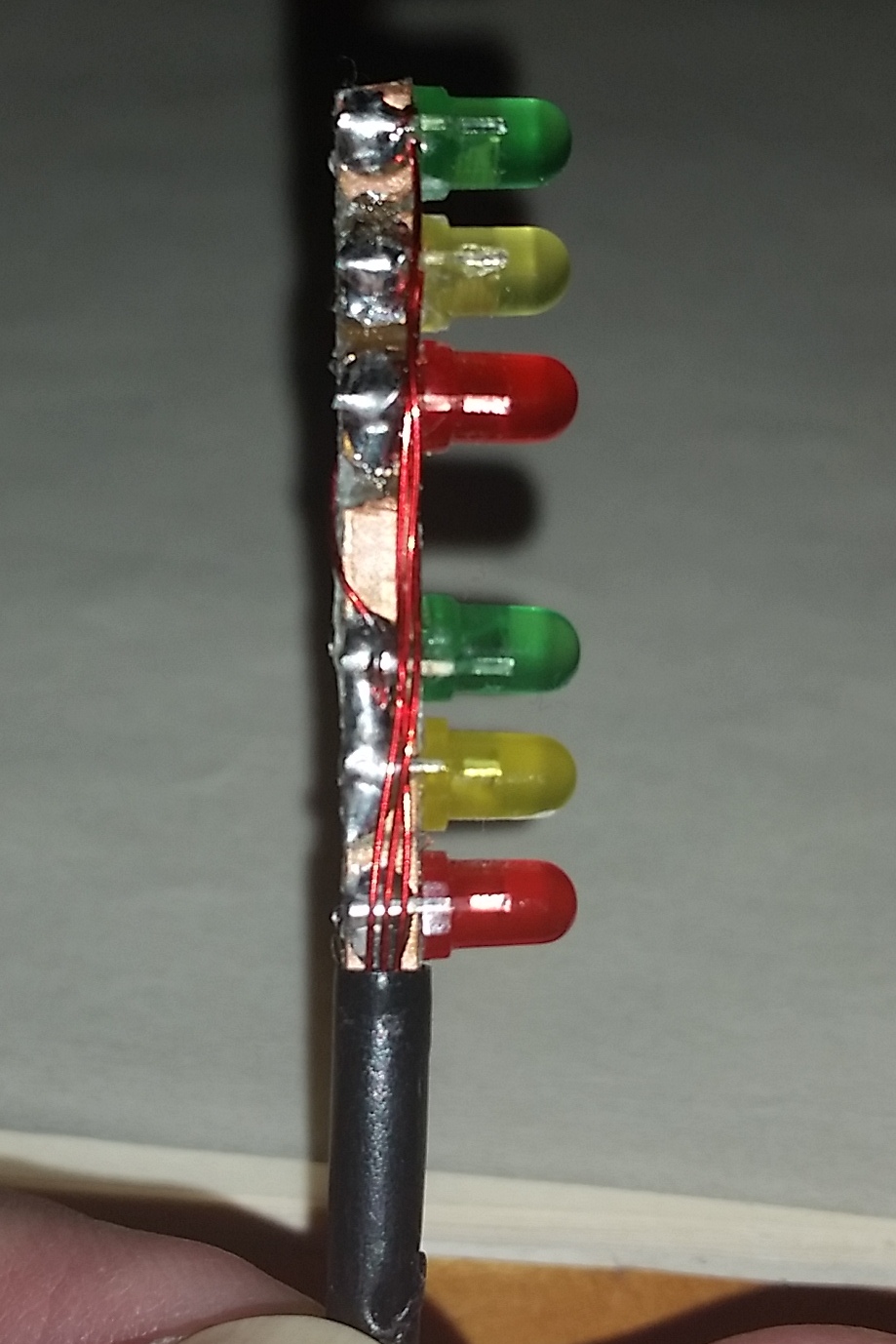

File comment: NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie.
📷 Attachment lost: 2015-07-20 19.55.19.jpg
321,915 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
NSW (Aust) style signal mast. Six aspects, G/Y/R over G/Y/R.
HO scale, 3mm LEDs on Fast-Tracks tie. |
2015-07-20 19.55.19.jpg [ 314.37 KiB | Viewed 9600 times ]
|

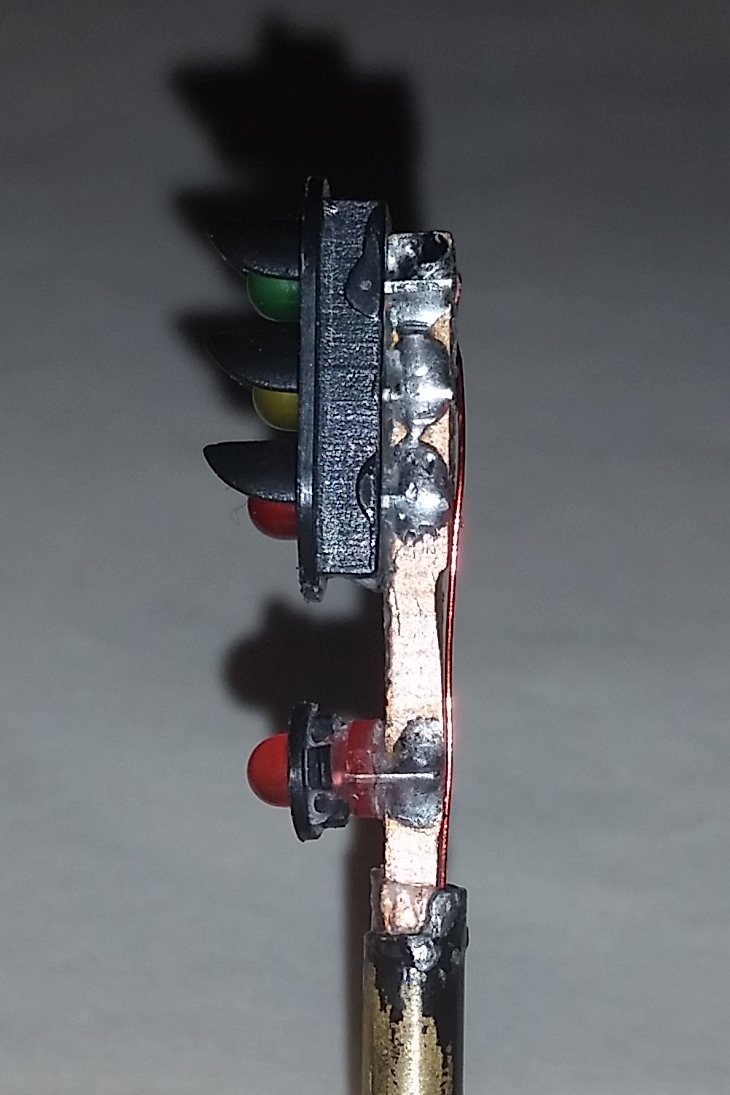

File comment: NSW (Aust) style signal mast. Four aspects, G/Y/R over R.
HO scale, 3mm LEDs on Fast-Tracks tie. 3 aspect signal shield from the internet. Single aspect shield cutdown 3mm LED bezel.
📷 Attachment lost: 2015-07-20 19.56.39.jpg
227,924 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
NSW (Aust) style signal mast. Four aspects, G/Y/R over R.
HO scale, 3mm LEDs on Fast-Tracks tie. 3 aspect signal shield from the internet. Single aspect shield cutdown 3mm LED bezel. |
2015-07-20 19.56.39.jpg [ 222.58 KiB | Viewed 9600 times ]
|

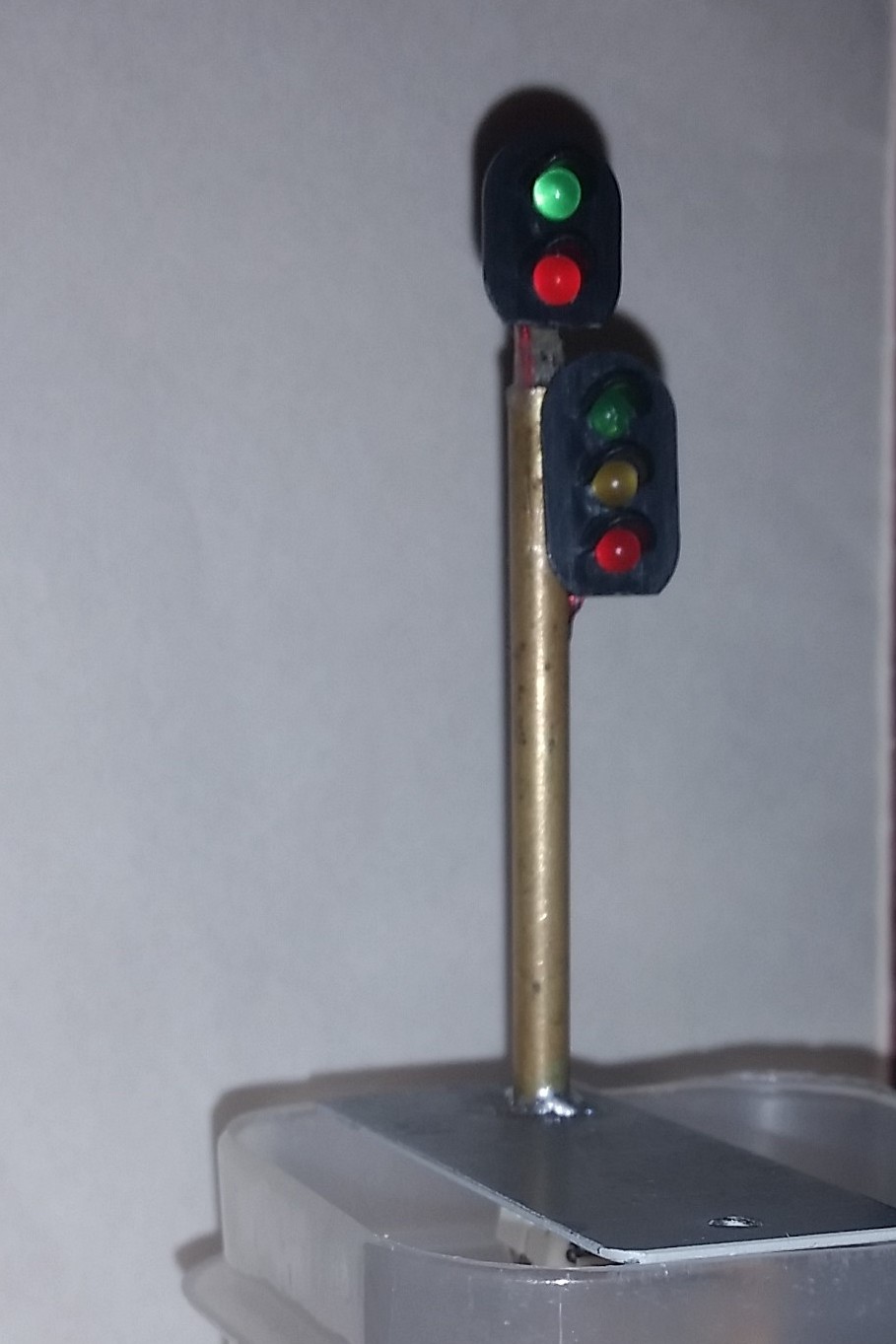

File comment: NSW (Aust) style signal mast. Five aspects, G/R over offset G/Y/R.
HO scale, 3mm LEDs on 2 Fast-Tracks ties.
📷 Attachment lost: 2015-07-20 19.53.11.jpg
145,307 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
NSW (Aust) style signal mast. Five aspects, G/R over offset G/Y/R.
HO scale, 3mm LEDs on 2 Fast-Tracks ties. |
2015-07-20 19.53.11.jpg [ 141.9 KiB | Viewed 9600 times ]
|

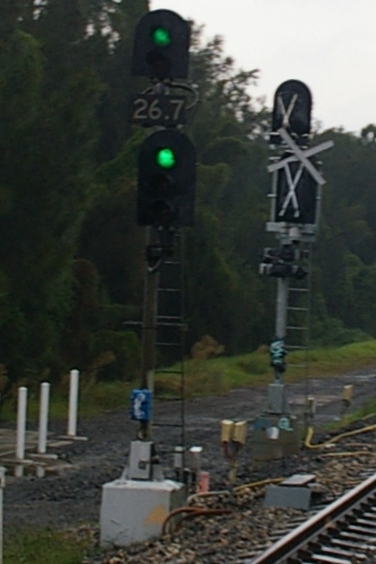

File comment: The real thing in Sydney. Five aspects, G/R over offset G/Y/R.
📷 Attachment lost: IMGP4785.JPG
141,457 bytes, uploaded 2015-07-20 — file destroyed in an April 2019 hosting restore, before this archive was made.
The real thing in Sydney. Five aspects, G/R over offset G/Y/R. |
IMGP4785.JPG [ 138.14 KiB | Viewed 9600 times ]
|
|
