What I have done, is use through the hole via's, to bring power from underneath the track, to the top of the tie. Through the hole via's, are used to move power from one side of a double PCB board, to the other. What I do, is drill a 1.1mm hole through the PCB tie. I then place a via, that is 1mm outside diameter, with a .8mm inside diameter from the top down, run a 22AWG stranded wire from the bottom up, through the via, then drop a small bit of solder on top of the tie. I also power the frog this way. Then drill holes through the road bed, and wire to the main power. One last thing, be sure and cut a slot in the copper foil on the bottom of the tie. Didn't think to do this on the first one.
| Attachments: |
File comment: Through the hole Via's
📷 Attachment lost: IMG_2357.jpg
98,708 bytes, uploaded 2015-11-06 — file destroyed in an April 2019 hosting restore, before this archive was made.
Through the hole Via's |
IMG_2357.jpg [ 96.39 KiB | Viewed 20462 times ]
|

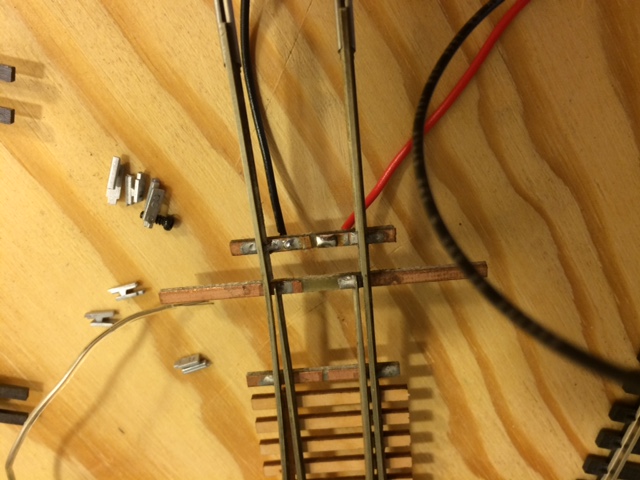

File comment: A picture taken from the top, showing the via, and and wire soldered in place
📷 Attachment lost: IMG_2358.JPG
108,054 bytes, uploaded 2015-11-06 — file destroyed in an April 2019 hosting restore, before this archive was made.
A picture taken from the top, showing the via, and and wire soldered in place |
IMG_2358.JPG [ 105.52 KiB | Viewed 20462 times ]
|

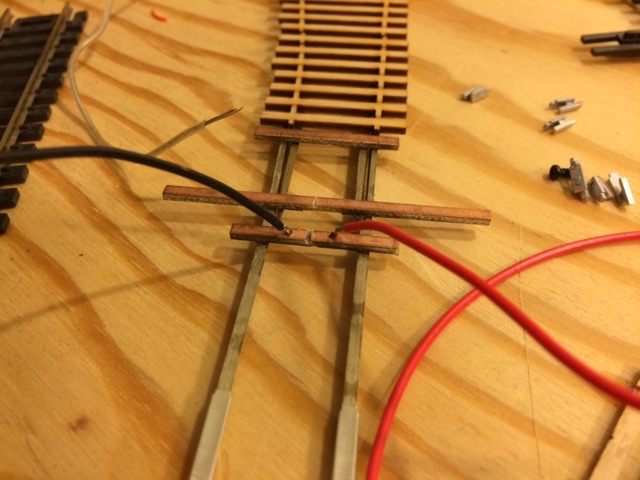

File comment: Picture taken from the bottom, showing how the wires are attached.
📷 Attachment lost: IMG_2359.jpg
115,255 bytes, uploaded 2015-11-06 — file destroyed in an April 2019 hosting restore, before this archive was made.
Picture taken from the bottom, showing how the wires are attached. |
IMG_2359.jpg [ 112.55 KiB | Viewed 20462 times ]
|
