littletree
 Post subject: A few pics
PostPosted: Tue Dec 06, 2005 10:24 pm
Offline

Joined: Mon Nov 14, 2005 8:50 pm
Posts: 73
Location: Cassville, MO
Here are a few pictures of TO's I made. My photography skills are not great but thought I would share them. One of them shows reusing quicksticks to make a fixture to apply regular wooden ties to a finished TO. It works real well. I used a similiar fixture to place the ties on the photo showing the "alternating TO's" in one of the other pics. The Fast Tracks tools and supplies are extremely versatile.


Attachments:

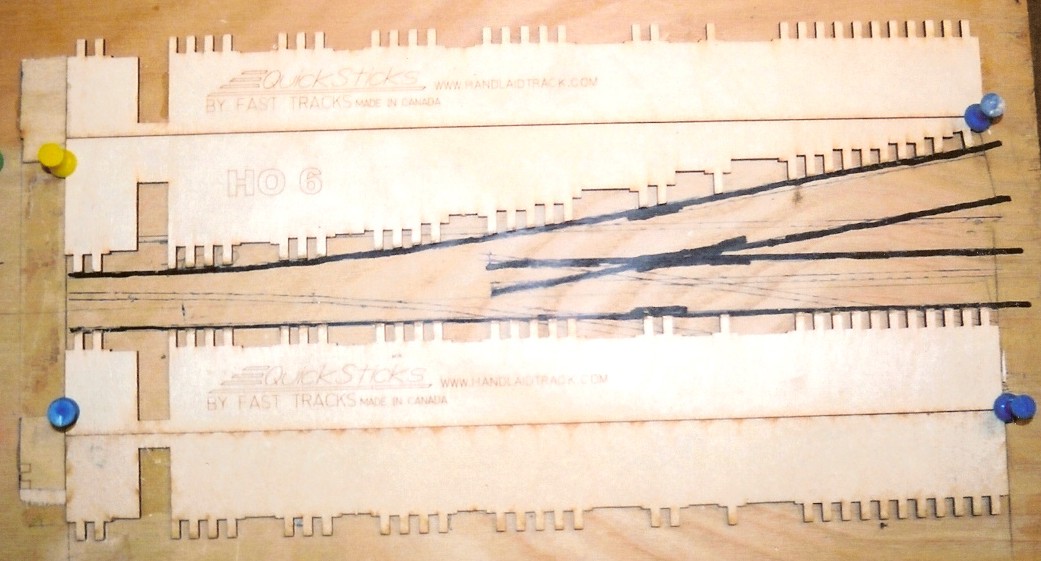

File comment: A good use for quickstick scraps.
quicktie scrap reused #6 TO.jpg
quicktie scrap reused #6 TO.jpg [ 126.4 KiB | Viewed 7861 times ]

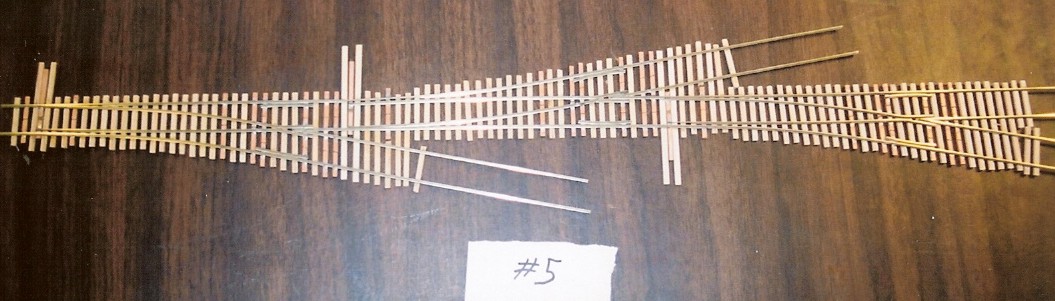

File comment: These are as close together as I thought I could get them.
#5 alternating TOs close spacing.jpg
#5 alternating TOs close spacing.jpg [ 99.67 KiB | Viewed 7861 times ]

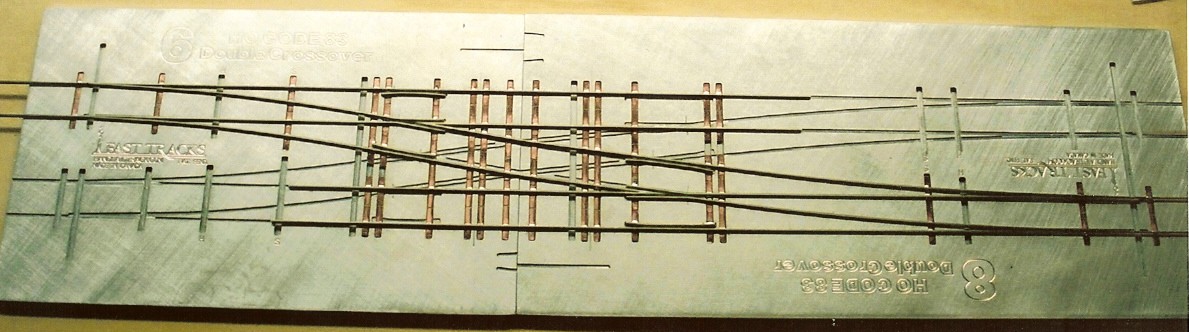

File comment: Using a #6 dbl xover with #8 dbl xover fixtures for sngl #6 to #8 xover.
#6 #8 fixtures for sngl xover.jpg
#6 #8 fixtures for sngl xover.jpg [ 116.64 KiB | Viewed 7861 times ]

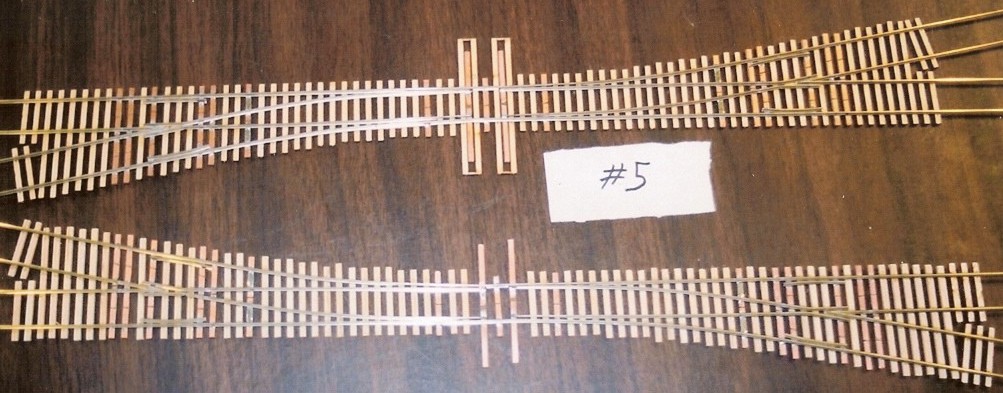

File comment: Opposing TO's with points as close as I could get them.
#5 point to point turnouts.jpg
#5 point to point turnouts.jpg [ 130.19 KiB | Viewed 7860 times ]

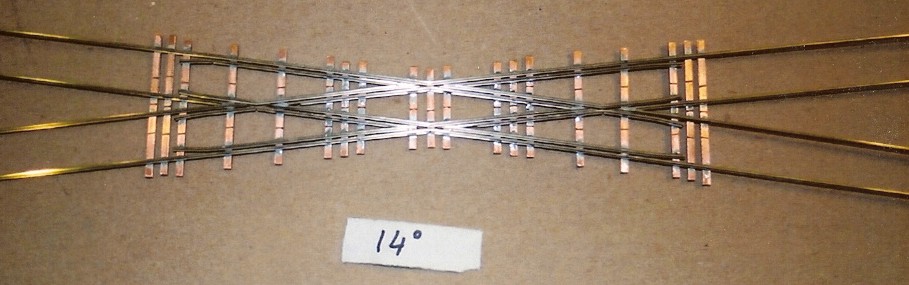

File comment: Crossing made using #8 dbl xover fixture.
14 deg crossing from dbl xover.jpg
14 deg crossing from dbl xover.jpg [ 70.2 KiB | Viewed 7860 times ]


Last edited by littletree on Sat Dec 10, 2005 3:13 pm, edited 1 time in total.
Top
 Profile

sam
 Post subject:
PostPosted: Sat Dec 10, 2005 2:39 pm
Offline

Joined: Mon May 24, 2004 6:02 pm
Posts: 63
Location: vestal, ny
great looking trackwork littletree :)
really like the way you "spliced" together the #6 and #8 scissors crossover :idea:
