 Post subject: Double Single Crossover
PostPosted: Sat Aug 04, 2007 2:49 pm
Offline

Joined: Sat Aug 12, 2006 7:04 pm
Posts: 45
I have just finished teh main construction phase of a Double Single Crossover Netwoork. See the attached photos. Any Comments?


Attachments:

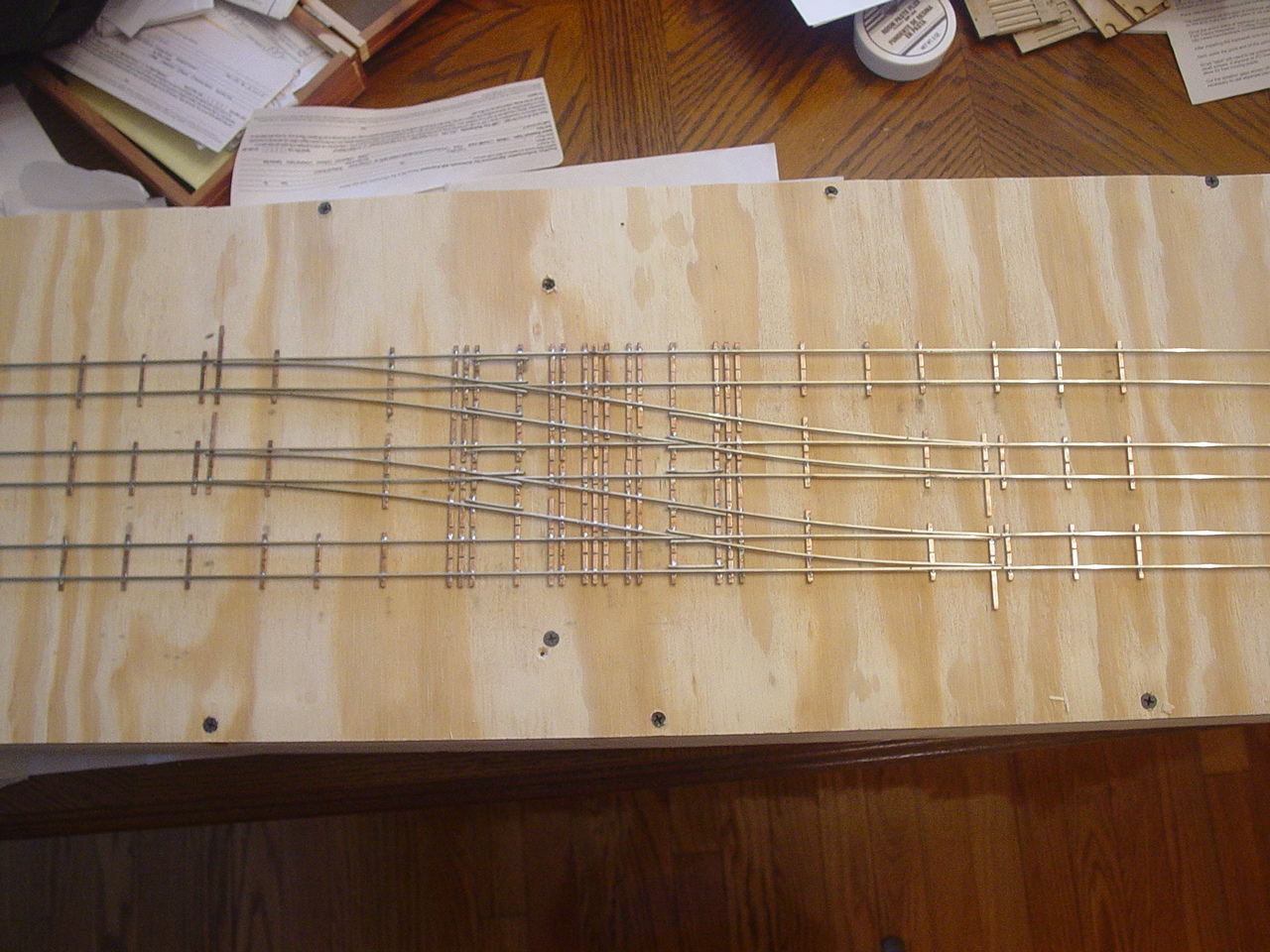

File comment: An overall View
Mavica Disk 4 108.jpg
Mavica Disk 4 108.jpg [ 593.69 KiB | Viewed 9430 times ]
File comment: Some Detail of the crosovers them selves

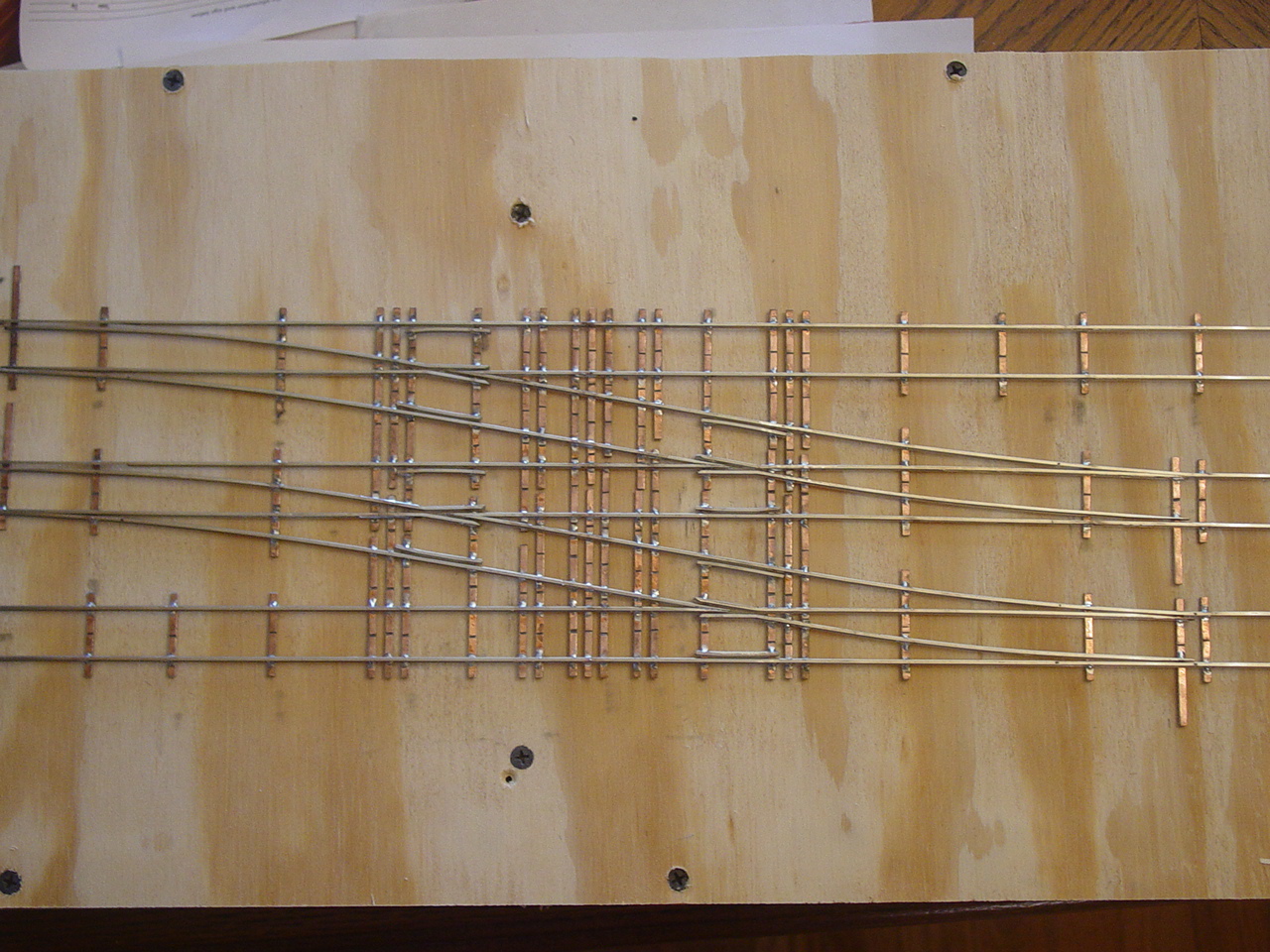

Mavica Disk 4 109.jpg
Mavica Disk 4 109.jpg [ 553.22 KiB | Viewed 9430 times ]
Top
 Profile

hoborob
 Post subject:
PostPosted: Sat Aug 04, 2007 2:52 pm
Offline

Joined: Sat Aug 12, 2006 7:04 pm
Posts: 45
Oh I should note that these were built using the Double Crossover template. The whole structure had to be built in two halves and then joined to make one unit. The tie pattern used allows the whole thing to be picked up as a unit with one hand.
Top
 Profile

Tim Warris
 Post subject:
PostPosted: Tue Aug 07, 2007 11:23 am
Offline
Site Admin

Joined: Fri May 07, 2004 11:22 pm
Posts: 311
Location: Port Dover, Ontario
Wow!

Ok, I am officially impressed with this one. Beautiful work that demonstrates a creative use of the tools.

Thanks for posting the images.

_________________
Cheers!

Tim Warris
Fast Tracks
http://www.fast-tracks.net
service@fast-tracks.net
Top
 Profile

hoborob
 Post subject:
PostPosted: Tue Sep 04, 2007 9:09 pm
Offline

Joined: Sat Aug 12, 2006 7:04 pm
Posts: 45
Here is an update to the building of this crossover. I built up the tie system for the crossover using the Quicksticks Single Crossovers last evening and the photo shows the results of that effort. Tonight I have built up the approaching tracks on either side in preparation for actually drilling the slots for the throwrod of the Tortoise machines I will be using to operate the crossovers which will be followed by installing the crossovers by spiking the assembly down.


Attachments:

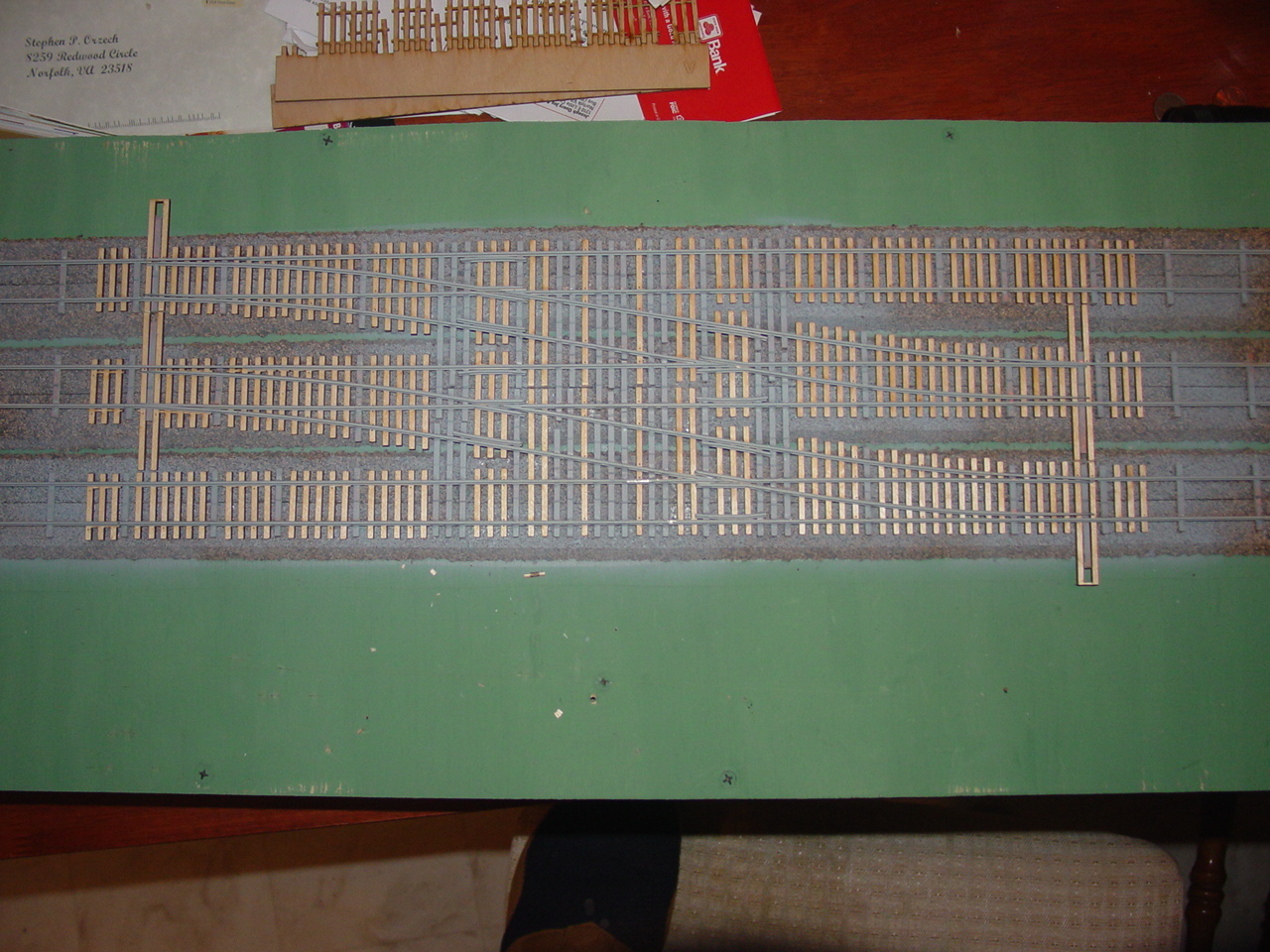

File comment: Crossover network shown with crossover in place but not spiked down.
